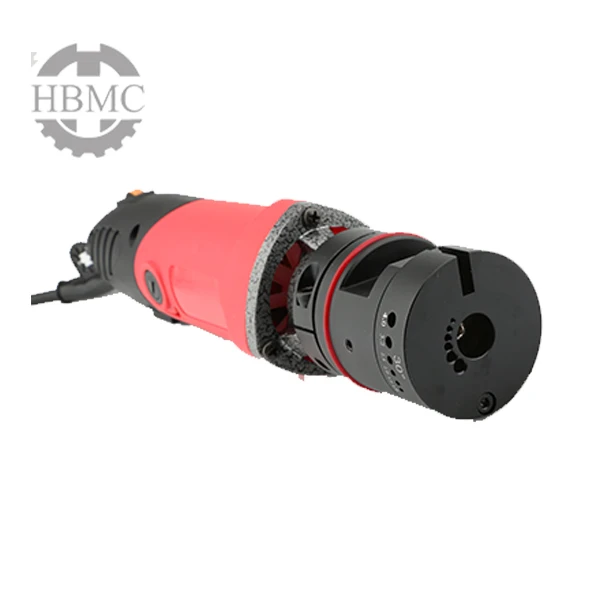

The tungsten electrode grinder is welding auxiliary equipment used for grinding the tip of tungsten electrodes. During daily operation, the equipment may produce abnormal noise and excessive body vibration. Failure to troubleshoot in a timely manner will affect the grinding precision of tungsten electrodes, accelerate component wear, and even bring potential safety hazards. Many welding operators need a step-by-step troubleshooting plan when equipment abnormalities occur. This article sorts out common causes of abnormal noise and vibration of tungsten electrode grinders and corresponding solutions.
1. Safety Inspection and Shutdown Confirmation
Before troubleshooting, cut off the power supply and wait until the grinding wheel stops completely to prevent accidental startup and injury. Clean dust and tungsten electrode debris inside the grinding chamber, check for damage to the outer casing, and ensure the equipment is placed on a flat and stable workbench to eliminate vibration caused by improper basic installation.
2. Troubleshooting of the Grinding Wheel
The grinding wheel is a component that frequently triggers abnormal noise and vibration.
1.Uneven wear and eccentricity of the grinding wheel. After long-term use, uneven abrasion of the grinding wheel will lead to eccentric rotation, resulting in continuous vibration and periodic abnormal noise during operation. Observe the edge of the grinding wheel. If obvious chipping or uneven thickness is found, replace the grinding wheel.
2.Loose installation of the grinding wheel. If the fixing nut is not tightened, the grinding wheel will shake during high-speed rotation and produce impact noise. Tighten the fixing nut of the grinding wheel in accordance with the equipment manual and check whether the gaskets are complete.
3.Blocked grinding wheel. Tungsten electrode dust fills the pores of the grinding wheel, causing unbalanced weight and increased vibration during operation. Stop the machine and clean debris accumulated on the surface of the grinding wheel. Replace the grinding wheel directly if severe blockage occurs.
3. Troubleshooting of Bearings and Main Shaft
Worn main shaft bearings or insufficient lubricating grease are common sources of abnormal noise. When the balls inside bearings are worn or corroded, continuous buzzing or clicking noise will occur during operation, accompanied by machine vibration.
Check the rotation feel of the main shaft. Rotate the main shaft by hand. If jamming or obvious play exists, the bearing is most likely damaged. For bearings with insufficient oil, add suitable lubricating grease according to the equipment maintenance specifications. Replace the bearing assembly if bearings are severely worn.
4. Troubleshooting of Transmission Components
For belt-driven tungsten electrode grinders, aging belts or improper tension will trigger vibration and noise. An overly loose belt slips and generates friction noise; an overly tight belt increases bearing load and aggravates vibration.
Check whether the belt is cracked or tooth-shedding. Replace aged belts directly and adjust belt tension to an appropriate range. Meanwhile, inspect the belt pulley. Eccentric belt pulleys or worn key grooves will also cause rotation shaking, which requires calibration or pulley replacement.
5. Troubleshooting of Base and Fixing Issues
Falling off of anti-slip pads at the equipment base or uneven tabletop causes shaking of the whole machine during operation and amplifies noise. Check the shock-absorbing foot pads. Replace foot pads that are missing, aged or hardened. Place the equipment on a hard and flat tabletop and fasten the equipment to avoid displacement during operation. In addition, loose outer casing screws will cause casing resonance and abnormal noise during high-speed operation. Tighten all outer casing screws one by one.
6. Other Causes of Abnormal Noise and Vibration
1.Foreign matter entering the grinding chamber. Tungsten electrode fragments and metal dust stuck between the grinding wheel and guard will produce intermittent impact noise during rotation. Stop the machine, remove the guard and clean internal foreign objects.
2.Motor faults. Eccentric motor rotors or partial abnormalities in windings lead to continuous vibration accompanied by motor hum. Such faults require professional personnel to inspect the motor, and repair or replace the motor if necessary.
3.Improper feeding of tungsten electrodes. Pressing the tungsten electrode hard and forcing it against the grinding wheel during grinding will instantly generate vibration and harsh noise. Control the feeding force during operation, feed the tungsten electrode gently, and avoid continuous heavy pressure on the grinding wheel.
7. Trial Operation after Fault Handling and Daily Maintenance
After fault handling, perform no-load trial operation to observe the vibration and noise status of the equipment and confirm that abnormal noise is eliminated. After normal no-load operation, test and grind tungsten electrodes.
Regularly clean equipment dust in daily use, check the status of grinding wheels, bearings and belts on schedule, tighten screws in time, and perform lubrication maintenance to reduce fault occurrence. Operate in a standardized manner during work and avoid pressing the grinding wheel forcibly to extend the service life of equipment.
Summary
For abnormal noise and vibration of tungsten electrode grinders, priority should be given to checking eccentric or loose grinding wheels, bearing wear, belt abnormalities, failure of base shock absorption and foreign objects stuck in the chamber. Troubleshooting must be carried out with power cut. Distinguish faults caused by rotating components from those caused by improper installation or operation. Simple faults can be adjusted on site. If core components such as motors and main shaft bearings are damaged, professional personnel are recommended for maintenance. Conduct daily maintenance and standardize grinding operation to reduce the probability of abnormal noise and vibration faults of tungsten electrode grinders.
